Langlebiges Alarmalarmprüfventil ist ein Nassalarmprüfventil, das im WER -Rohr -Sprinklersystem aufgetragen wird. Die Hauptfunktion dieses Ventils besteht darin, es möglich zu machen, dass die Installation von Sprinklersystemen in Gebäuden, die nicht gefrorenen Temperaturen ausgesetzt sind, die Installation von Sprinklersystemen ermöglichen. Mit den Bemühungen unseres F & E -Teams wird dieses Ventil von inländischen und übersea -Kunden genehmigt.

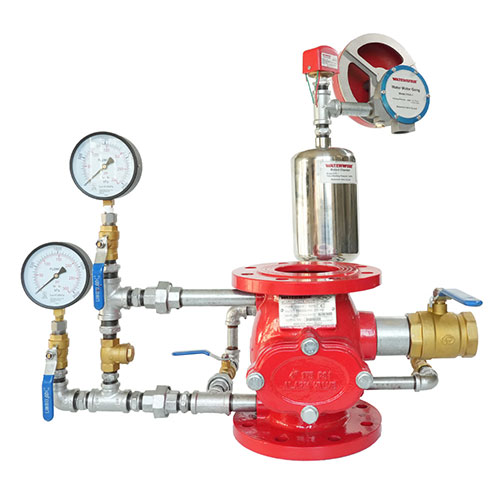

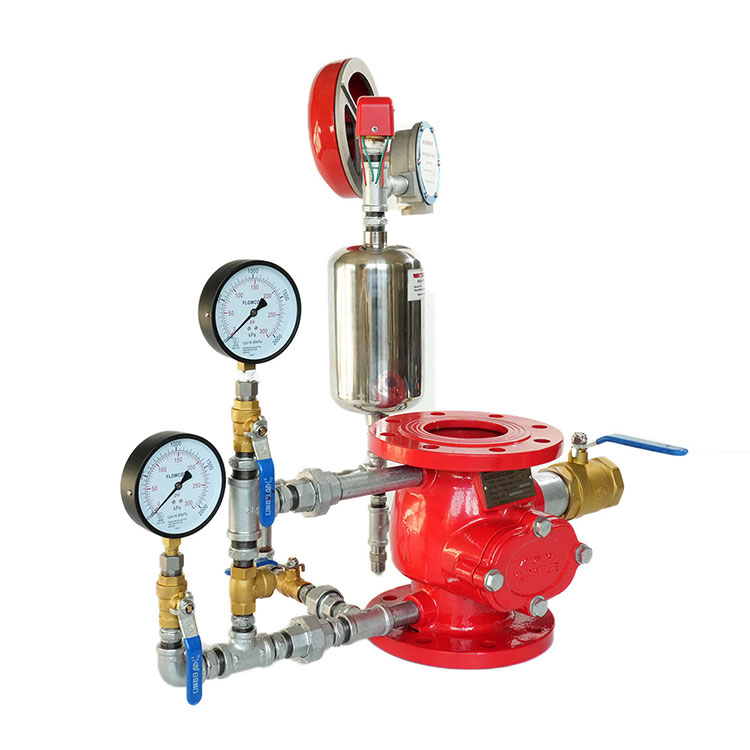

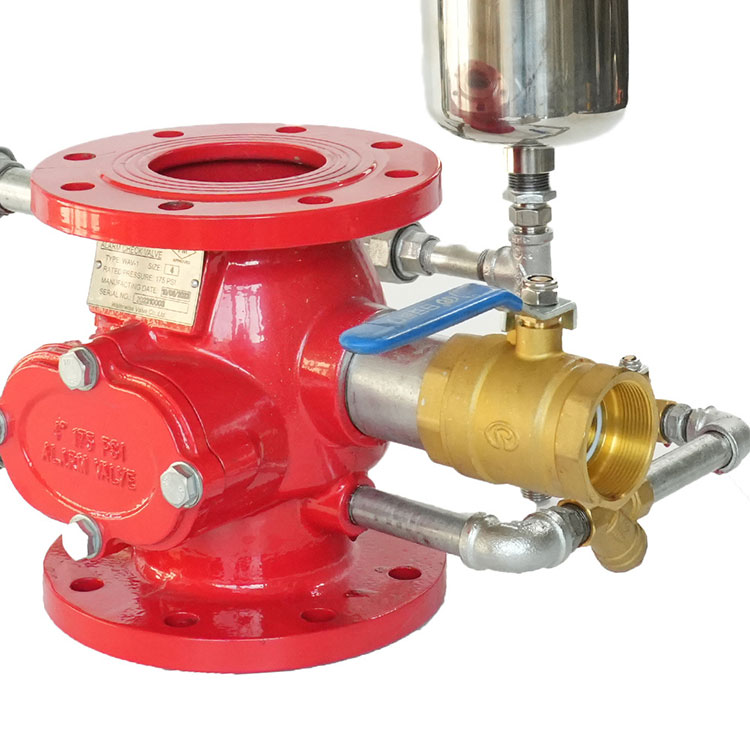

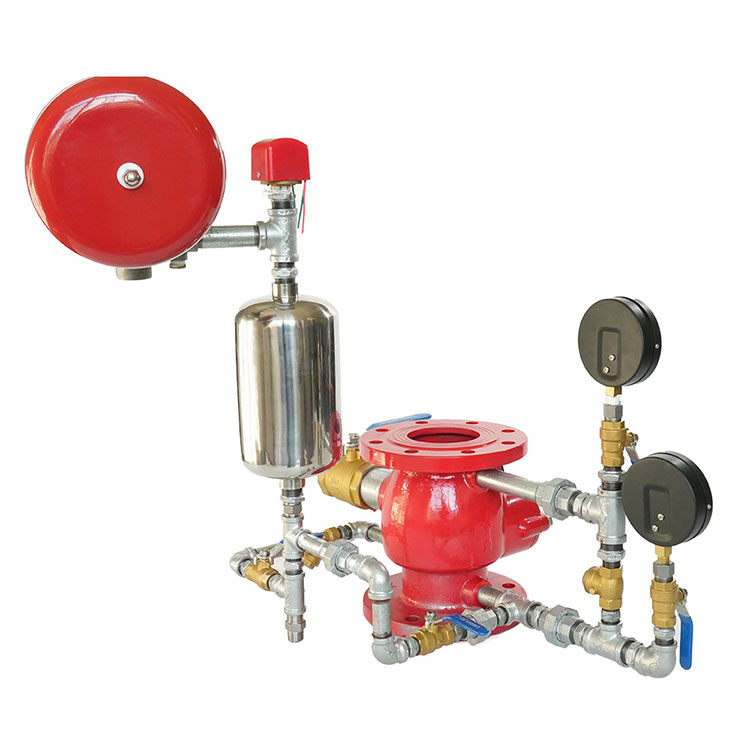

Durable Plent 6 inch Alarm Check Valve is a wet alarm check valve applied in wer pipe sprinkler system. The main function of this valve is to make it possible that the installation of sprinkler systems in buildings not subject to freezing temperatures. With our R&D team’s effort, this valve gets approved by domestic and oversea customers.
Plent 6 inch Alarm Check Valve s available with a flanged inlet and flanged outlet. Please be noted that the flange type only support ANSI type. For more info. please refer to below tech data chart
|
Product |
Plent 6 inch Alarm Check Valve |
|
Model# |
WAV1 6” |
|
Inlet Connection |
ANSI Flange |
|
Outlet Connection |
ANSI Flange |
|
Shipping Weight |
75lbs /35kg |
|
Max Working Prssure |
175 PSI / 1.2 Mpa (12 bar) |
|
Factory Hydro Test |
%100 @ 350 PSI / 2.4 Mpa (24 bar) |
|
Standard Finish |
Red Painting |
|
Flange Specification |
Flange: Class 150 ANSI B16.1 |
|
Required Accessories |
Standard Trim |
|
Optional Accessories |
Retard Chamber, Water Motor Alarm, Alarm Pressure Switch |
|
Installation Manner |
Vertically |
|
Certificate |
FM |
1. All necessary nipples and fittings
2. All standard trim accessories
3. All necessary gauges
● Oil & Gas
● Fuel Storage Area
● Fire & Rescue
● Mining
● Sea Conditions
● Chemical Industry
For More info about Ningbo Plent 6 inch Alarm Check Valve products, feel free to contact us any time.
